CL8.14-Inbuilt Wood Burning Stove with fan
product

CL8.14-Inbuilt Wood Burning Stove with fan

Nominal heat output: 11KW
Heating type: Convection
Fuel: Wood logs
Material: carbon steel, Galvanized steel, ceramic glass(NEG or Schott brand), high temperature resistant paint(Forest brand)
Firebox material: carbon steel
Primary air: Yes
Secondary air: Yes
Ashpan: yes
Hot air blower : Yes
Blower speed adjustable: Yes
Heat is diffused by radiation and convection through the front and the exterior of the fireplace. The Primary air, Secondary air and the Air wash system are all controlled with one lever below the door, which gives you ultimate control of the fire. It comes with Secondary combustion which improves the efficiency of the burning process; allows for less fuel usage and less fuel emissions. A double baffle plate of stainless steel and vermiculite has been used for improved control and regulation of the up draught. This also helps the heat stay in the combustion chamber for longer and increases the heat output. There is improved performance and strength with a Vermiculite lined combustion chamber which prolongs the heat accumulation after the fire goes out. It also reinforces the ''clean glass'' process by reflecting hot air towards the glass. The Precise has a normal fuel consumption of 3.5kg per hour and the combustion chamber comfortably burns 35cm logs.
Description

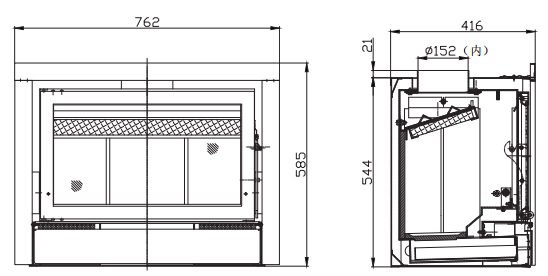

drawing

Height*Width*Depth

629*855*484mm

Nominal heat output (kw)

11kw

Maximum efficiency (%)

75%

CO [email protected] 13% O2

0.435%

Room heating capacity

120㎡

Weight (kg)

128kg

Flue outlet (MM)

156

Flue gas temperature

290℃

Paint finish

Black

NINGBO PRECISE MACHINERY CO., LTD is CL8.14-Inbuilt Wood Burning Stove with fan supplier in China. We wholesale CL8.14-Inbuilt Wood Burning Stove with fan. We have passed CCC, CE, AS/NZS, OMNI. The relationship between the exploited and supplied energy in a system. The higher the level of efficiency (0-100%) the better the stove exploits the supplied energy, in the form of the logs that are burned. A stove that is wood fired usually has an efficiency of 50-70 %. Most Contura models have levels of efficiency in excess of 70%.
