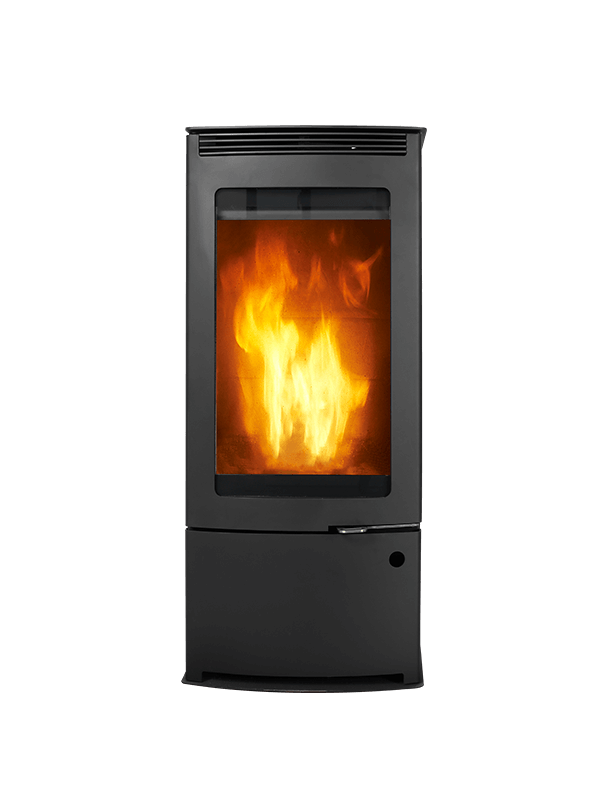

DS02-Clear Glass Wood Burning Stove
product

DS02-Clear Glass Wood Burning Stove

Nominal heat output: 8.6KW
Heating type: Radiant
Fuel: Wood logs
Thermal efficiency (%):76.2%
Dust emission(mg/nm³):37
Material: carbon steel, cast iron grate, ceramic glass(NEG or Schott brand), high temperature resistant paint(Forest brand)
Firebox material: carbon steel, vermiculite panels
CO [email protected] 13% O2(%):0.06%
Primary air: Yes
Secondary air: Yes
Ashpan: yes
Shape: Round
Large glass window and heavy gauge reinforced plate steel with firebrick lining.Firebrick lined for long life and combustion efficiency.
Included: pedestal with ash drawer, ceramic glass, ash lip, air damper.
Operating Wattage 8.6 (KW), Voltage 120 Volts (V), Greater than 76.2% thermal efficiency, 50-150㎡ heating capacity.Its space-saving shape and attractive design will make it a welcomed addition to any room.
Description
drawing

Height*Width*Depth

1058*458*438mm

Nominal heat output (kw)

8.6kw

Thermal efficiency (%)

76.2%

Dust emission(mg/nm³)

37

CO [email protected] 13% O2(%)

0.06%

Room heating capacity

50-150㎡

Weight (kg)

125kg

Flue pipe outlet (MM)

150mm

NINGBO PRECISE MACHINERY CO., LTD is DS02-Clear Glass Wood Burning Stove supplier in China. We wholesale DS02-Clear Glass Wood Burning Stove. We have passed CCC, CE, AS/NZS, OMNI. The relationship between the exploited and supplied energy in a system. The higher the level of efficiency (0-100%) the better the stove exploits the supplied energy, in the form of the logs that are burned. A stove that is wood fired usually has an efficiency of 50-70 %. Most Contura models have levels of efficiency in excess of 70%.
