CL07-European Style Cylindrical Wood Burning Stove
product

CL07-European Style Cylindrical Wood Burning Stove

Nominal heat output: 8KW
Heating type: Radiant
Fuel: Wood logs
Material: carbon steel, cast iron grate, ceramic glass(NEG or Schott brand), high temperature resistant paint(Forest brand)
Firebox material: carbon steel, vermiculite panels
Primary air: Yes
Secondary air: Yes
Tertiary air: Yes
Ashpan: yes
The wood-burning stove should be installed in rooms with sufficient airflow, which is required for the combustion.
Not every wood-burning stove could be connected to any chimney. Before assembling the wood-burning stove, check if the static pressure and the chimney dimensions conforms to the needed parameters for the wood-burning stove. If the woodburning stove does not conform to the chimney, it will lead to a lower burning rate and polluting the glass with soot.
The floor, where the wood-burning stove is placed, should be flat and horizontal, made of non-combustible materials (mosaic, marble, terracotta, etc.). If the floor is not heat resistant (carpets, linoleums or others of the same kind) a stable, non-combustible platform should be used, made of steel, glass or stone plates.
Description

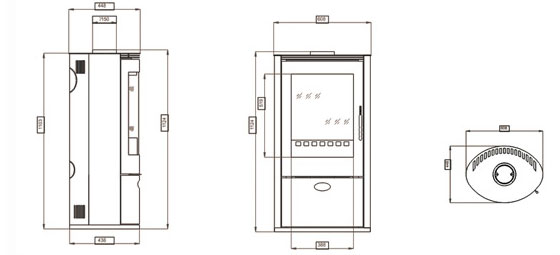

drawing

Height*Width*Depth

1103*598*498mm

Nominal heat output at maximum power (kw)

8kw

Nominal heat output at minimum power (kw)

6kw

Maximum efficiency (%)

75%

CO [email protected] 13% O2

0.435%

Room heating capacity

80㎡

Weight (kg)

140kg

Flue outlet (MM)

150 or 180

Flue gas temperature

310℃

Mass consumption of the fuel

2.2KG/h

NINGBO PRECISE MACHINERY CO., LTD is CL07-European Style Cylindrical Wood Burning Stove supplier in China. We wholesale CL07-European Style Cylindrical Wood Burning Stove. We have passed CCC, CE, AS/NZS, OMNI. The relationship between the exploited and supplied energy in a system. The higher the level of efficiency (0-100%) the better the stove exploits the supplied energy, in the form of the logs that are burned. A stove that is wood fired usually has an efficiency of 50-70 %. Most Contura models have levels of efficiency in excess of 70%.
