Material: carbon steel, cast iron grate,ceramic glass(NEG or Schott brand), high temperature resistant paint(Forest brand)
Firebox material: carbon steel,firebrick panels
Primary air: Yes
Secondary air: Yes
Ashpan: yes
Glass: 3-sided




|

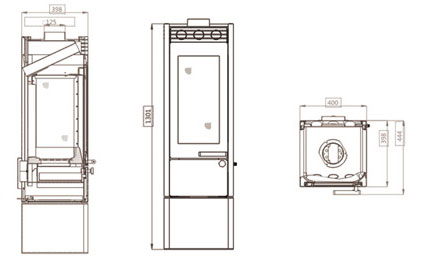

 Height*Width*Depth  |
 1301*398*400mm  |
|
 Nominal heat output (kw)  |
 4kw  |
|
 Maximum efficiency (%)  |
 65%  |
|
 CO emissions@ 13% O2  |
 0.435%  |
|
 Room heating capacity  |
 40-60㎡  |
|
 Weight (kg)  |
 122kg  |
|
 Flue outlet (MM)  |
 126  |
|
 Flue gas temperature  |
 345℃  |
|
 Wood dimension  |
 φ60*275mm  |
