Material: carbon steel,Cast iron door and frame, ceramic glass(NEG or Schott brand), high temperature resistant paint(Forest brand)
Firebox material: carbon steel
Primary air: Yes
Secondary air: Yes
Tertiary air: Yes
Ashpan: yes

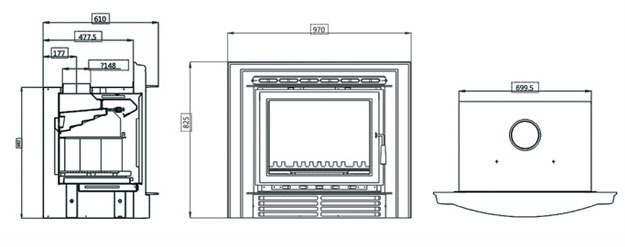

Height*Width*Depth | 825*970*610mm |
Nominal heat output (kw) | 17kw |
Maximum efficiency (%) | 60% |
CO emissions@ 13% O2 | 0.445% |
Room heating capacity | 180㎡ |
Weight (kg) | 205kg |
Flue outlet (MM) | 148 |
Flue gas temperature | 320℃ |
Paint finish | Black |
Wood dimension | φ75*400mm |
