Material: carbon steel, cast iron grate, ceramic glass(NEG or Schott brand), high temperature resistant paint(Forest brand)
Firebox material: carbon steel, vermiculite panels
Primary air: Yes
Secondary air: NO
Ashpan: yes
Glass: 3-sided

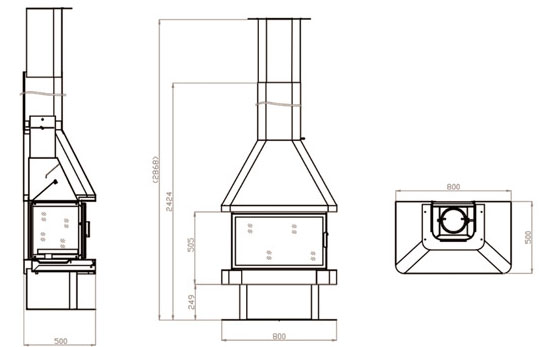

Height*Width*Depth | 2828*800*500mm |
Nominal heat output (kw) | 10kw |
Maximum efficiency (%) | 65% |
CO emissions@ 13% O2 | 0.53% |
Room heating capacity | 100㎡ |
Weight (kg) | 132kg |
Flue outlet (MM) | 180 |
Flue gas temperature | 310℃ |
Paint finish | Black |
